| 材质 | 不锈钢 |
|---|---|
| 产地 | 河北 |
| 品牌 | 霸耀 |

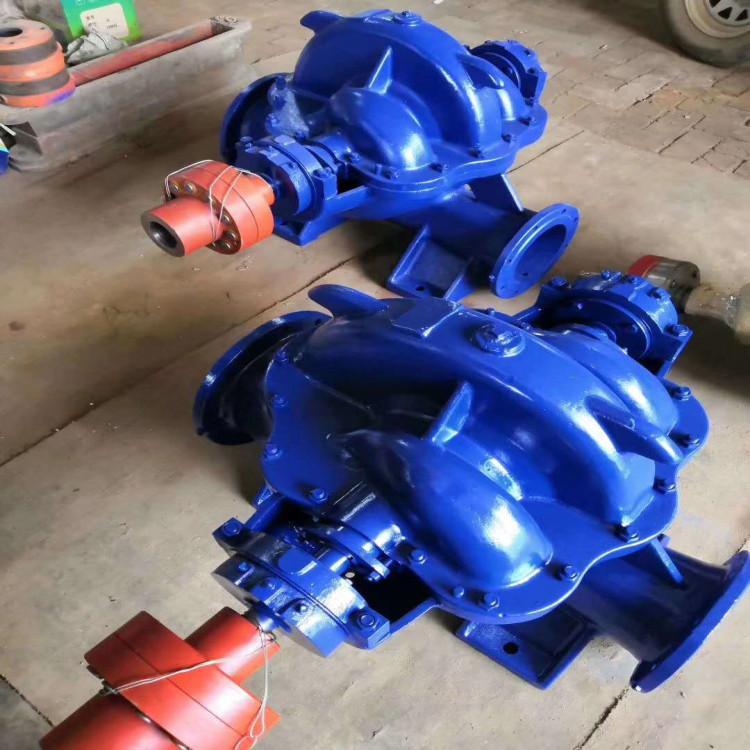

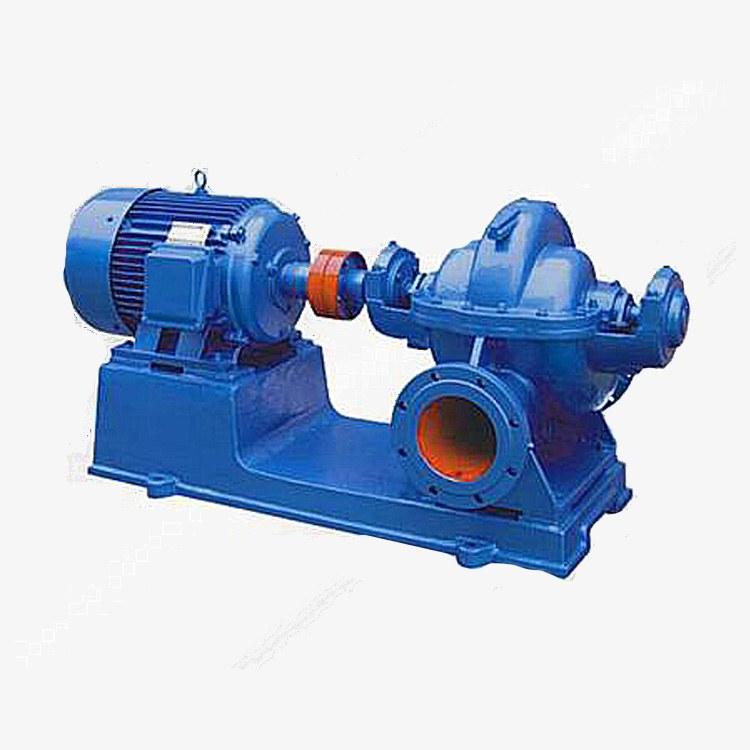

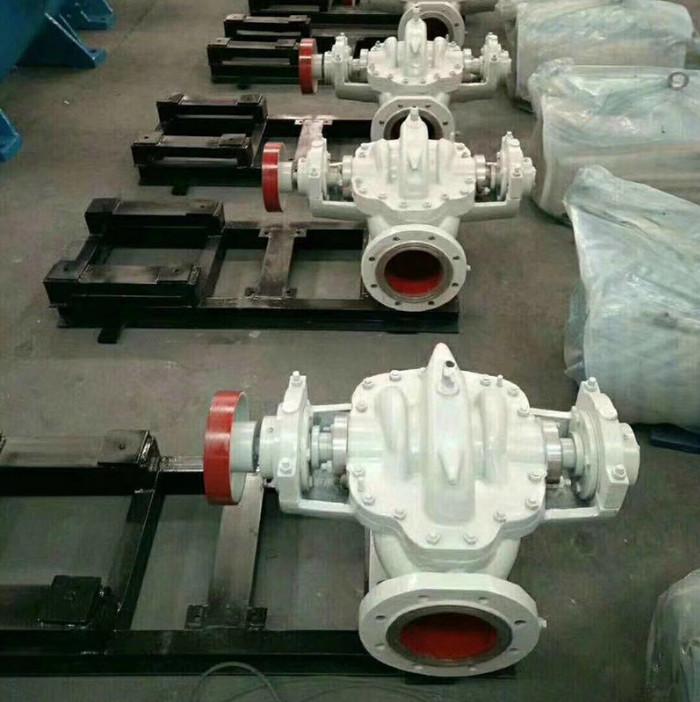

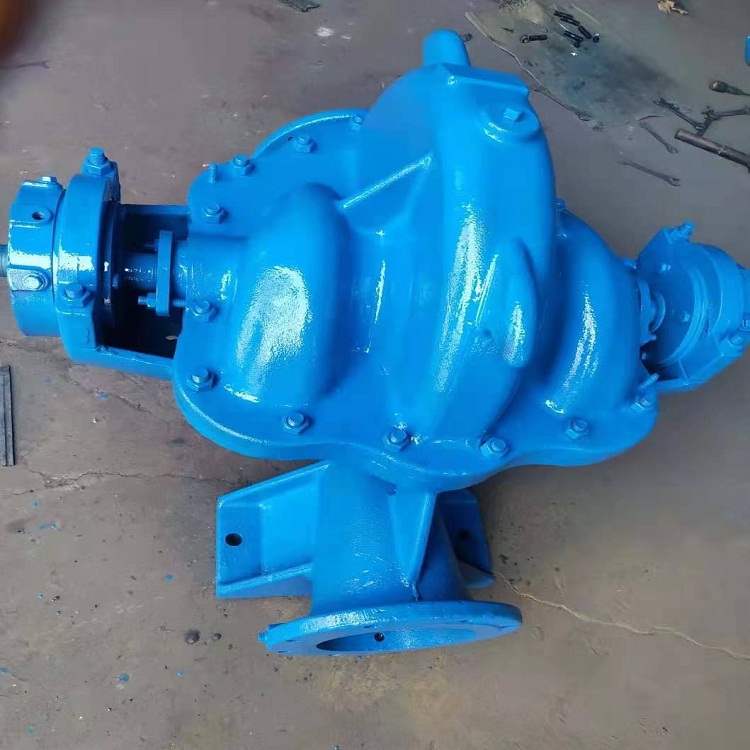

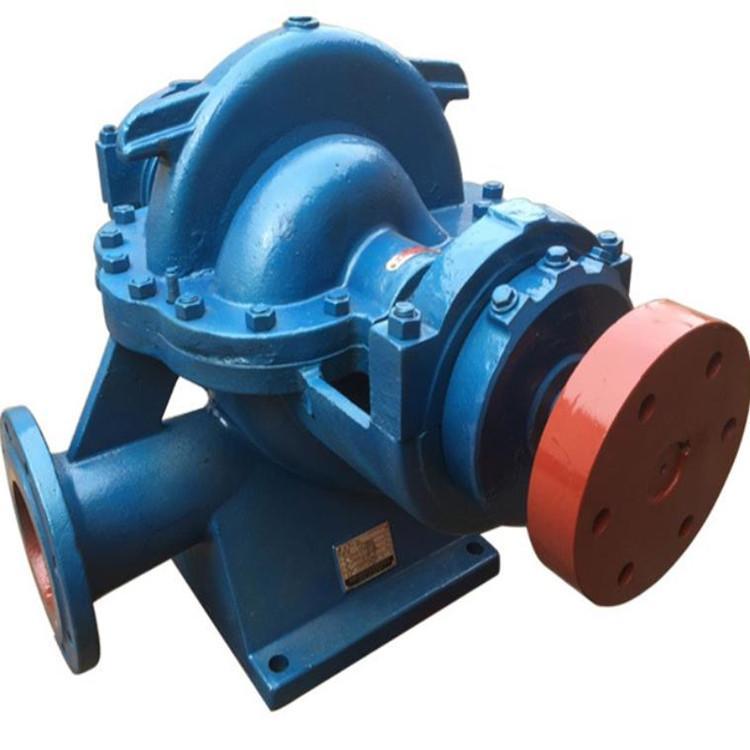

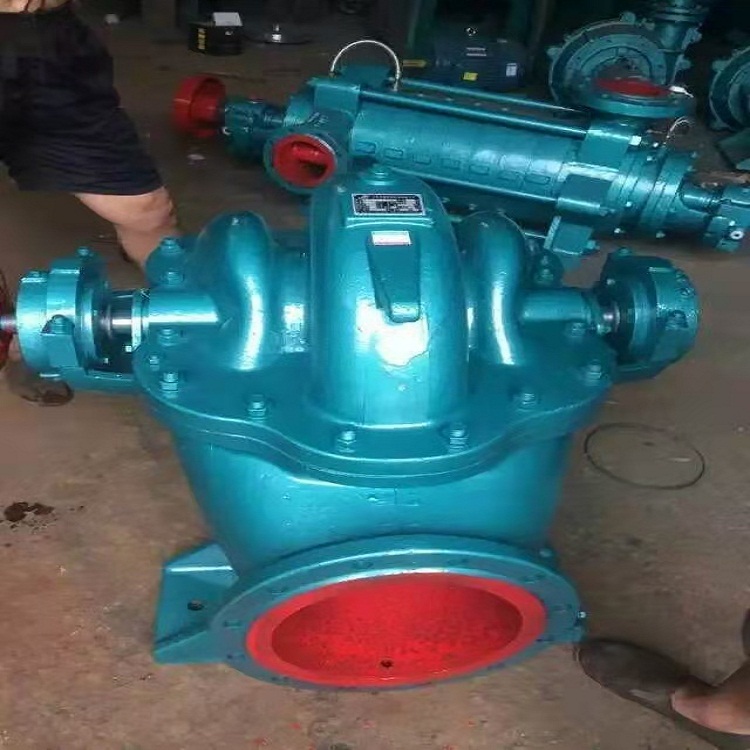

| 型号 | 双吸泵 |
| 加工定制 | 是 |
| 材料等级 | 不锈钢 |
| 泵型号 | 流量Q（m3/h） | 扬程H (m) | 转速n (r/min) | 泵效率η（%） | 汽蚀余量 NPSHr(m) | 轴功率Pa (KW) | 电机功率Pa (KW) |
| IH 50-32-125 | 12.5 | 20 | 2900 | 60 | 2 | 1.13 | 2.2 |
| IH 50-32-160 | 12.5 | 32 | 2900 | 54 | 2 | 2.02 | 3 |
| IH 50-32-200 | 12.5 | 50 | 2900 | 48 | 2 | 3.54 | 5.5 |
| IH 50-32-250 | 12.5 | 80 | 2900 | 38 | 2 | 7.16 | 11 |
| IH 65-50-125 | 25 | 20 | 2900 | 69 | 2.5 | 1.97 | 3 |
| IH 65-50-160 | 25 | 32 | 2900 | 65 | 2 | 3.35 | 5.5 |
| IH 60-40-200 | 25 | 50 | 2900 | 60 | 2 | 5.67 | 7.5 |
| IH 65-40-250 | 25 | 80 | 2900 | 50 | 2 | 10.86 | 15 |
| IH 65-40-315 | 25 | 125 | 2900 | 40 | 2.5 | 21.3 | 30 |
| IH 80-65-125 | 50 | 20 | 2900 | 74 | 3 | 3.63 | 5.5 |
| IH 80-65-160 | 50 | 32 | 2900 | 73 | 2.5 | 5.97 | 7.5 |
| IH 80-50-200 | 50 | 50 | 2900 | 59 | 2.5 | 9.87 | 15 |
| IH 80-50-250 | 50 | 80 | 2900 | 63 | 2.5 | 7.3 | 22 |
| IH 80-50-315 | 50 | 125 | 2900 | 54 | 2.5 | 31.5 | 37 |
| IH 100-80-125 | 100 | 20 | 2900 | 78 | 4.5 | 7 | 11 |
| IH 100-80-160 | 100 | 32 | 2900 | 78 | 4.0 | 11.2 | 15 |
| IH 100-65-200 | 100 | 50 | 2900 | 76 | 3.6 | 17.9 | 22 |
| IH 100-65-250 | 100 | 80 | 2900 | 72 | 3.8 | 30.3 | 37 |
| IH 100-65-315 | 100 | 125 | 2900 | 66 | 3.6 | 51.6 | 75 |
| IH 125-100-200 | 200 | 50 | 2900 | 81 | 4.5 | 33.6 | 45 |
| IH 125-100-250 | 200 | 80 | 2900 | 78 | 4.2 | 55.9 | 75 |
| IH 125-100-315 | 200 | 125 | 2900 | 75 | 4.5 | 90.8 | 110 |
| IH 125-100-400 | 100 | 50 | 1450 | 65 | 2.5 | 21.0 | 30 |
| IH 150-125-250 | 200 | 20 | 1450 | 81 | 3.0 | 13.5 | 18.5 |
| IH 150-125-315 | 200 | 32 | 1450 | 79 | 2.5 | 22.08 | 30 |
| IH 200-150-250 | 400 | 20 | 1450 | 83 | 4.6 | 26.2 | 37 |
| IH 200-150-315 | 400 | 32 | 1450 | 82 | 3.5 | 42.5 | 55 |
| IH 200-150-400 | 400 | 50 | 1450 | 81 | 3.8 | 67.2 | 90 |
