咨询电话	138 02027622
必需汽蚀余量	4m
材质	铝合金
规格	G5
流量	1.1m3/h
排出口径	20mm
排出压力	20Mpa
驱动方式	电动
适用范围	液压系统
吸入口径	27mm
效率	0.88
性能	无泄露
扬程	100m
用途	增压泵
原理	齿轮泵
转速	4000
贸易属性	外贸+内贸
泵轴位置	边立式
叶轮数目	单级
叶轮吸入方式	单吸式
发货期限	1天
品牌	原天津特精（TJ）
型号	G5-(排量)*-*(轴伸)** *-20-*
打样周期	2-3天

G5齿轮泵G5单泵G5双联油泵G5多联油泵

品牌：	原天机（TJ）
型号：	G5-(排量)*-(排量)*-*(轴伸)** *-20-*

详细说明

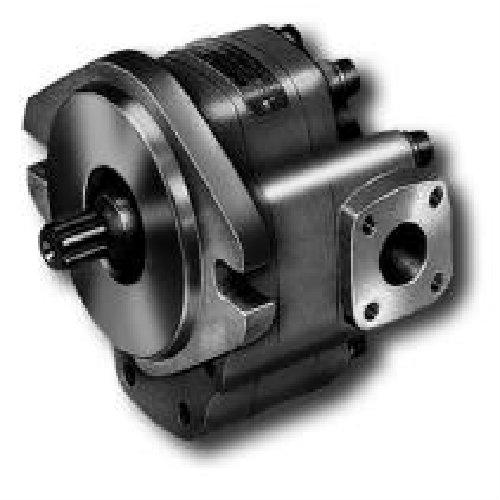

产品名称：G5齿轮泵单联双联多联泵 产品型号：G5-(排量)*-(排量)*-*(轴伸)** *-20-* 产品规格：排量（ml/r）5、6、8、10、12、16、20、25 产品单价：电议

 一，概述 G5齿轮泵是具有轴向挠性补偿和径向液压平衡的外啮合齿轮泵。G5齿轮泵可组成双联泵及四联泵。可以提供各种符合SAE标准GB安装法兰、轴伸、进出油口连接。 G5齿轮泵广泛应用于拖拉机、工程机械和其他机械的液压系统中。

G5齿轮泵突出特点：
1.结构紧凑,体积小重量轻。
2.工作可靠。
3.转速高,压力大。
4.连接方式适用于进口机械和工程机械。

 二，G5齿轮泵 功能参数（点击进入）

      G5双联泵 功能参数（点击进入）

       G5多联泵 功能参数（点击进入）



G5齿轮泵单泵型号：
G5-5-1E13S-20-L、G5-6-1E13S-20-L、G5-8-1E13S-20-L、G5-10-1E13S-20-L、G5-12-1E13S-20-L、G5-16-1E13S-20-L、G5-20-1E13S-20-L、G5-25-1E13S-20-L、G5-30-1E13S-20-L、G5-5-1E13F-20-R、G5-6-1E13F-20-R、G5-8-1E13F-20-R、G5-10-1E13F-20-R、G5-12-1E13F-20-R、G5-16-1E13F-20-R、G5-20-1E13F-20-R、G5-25-1E13F-20-R、G5-30-1E13F-20-R、G5-5-1E13F-20-L、G5-6-1E13F-20-L、G5-8-1E13F-20-L、G5-10-1E13F-20-L、G5-12-1E13F-20-L、G5-16-1E13F-20-L、G5-20-1E13F-20-L、G5-25-1E13F-20-L、G5-30-1E13F-20-L、G5-5-1H15S-20-L、G5-6-1H15S-20-L、G5-8-1H15S-20-L、
G5-10-1H15S-20-L、G5-12-1H15S-20-L、G5-16-1H15S-20-L、G5-20-1H15S-20-L、G5-25-1H15S-20-L、G5-30-1H15S-20-L、G5-5-1H15S-20-R、G5-6-1H15S-20-R G5-8-1H15S-20-R、G5-10-1H15S-20-R、G5-12-1H15S-20-R、G5-16-1H15S-20-R、G5-20-1H15S-20-R、G5-25-1H15S-20-R、G5-30-1H15S-20-R、G5-5-1H15F-20-L、G5-6-1H15F-20-L、G5-8-1H15F-20-L、G5-10-1H15F-20-L、G5-12-1H15F-20-L、G5-16-1H15F-20-L、G5-20-1H15F-20-L、G5-25-1H15F-20-L、G5-30-1H15F-20-L、G5-20-1FE13F-20-L、G5-20-1FE13F-20-R、G5-20-1E13S-20-R、G5-5-1FE13F-20-L、G5-6-1E13S-20-R、G5-8-A15R-20-R、G5-6-1E13S-20-R、G5-8-1H15F-20-R、G5-16-1E13S-20-R、G5-5-A13F-20-L、G5-6-A13F-20-L、G5-8-A13F-20-L、G5-10-A13F-20-L、G5-12-A13F-20-L、G5-16-A13F-20-R、G5-20-A13F-20-L、G5-25-A13F-20-L、G5-30-A13F-20-L、G5-8-1E13S-20-R、G5-12-1E13S-20-R、G5-5-1E13S-20-R、G5-8-A15S-20-R、G5-6-1E13S-20-R、G5-6-1E13S-20-L、G5-8-A15S-20-L、G510-1E13S-20-R、G5-10-1E13S-20-R、G5-16-A15R-20-L、G5-16-A15R-20-R、G5-5-1FE13F-20-L、G5-5-1FE13F-20-R、G5-20-A15R-20-R、G5-20-A15R-20-L、G5-25-1FE13F-20-R、G5-25-1FE13F-20-L、G5-6-A15S-20-R、G5-6-A15S-20-L、G5-20-1E13R-20-L、G5-20-1E13R-R、G5-10-A15S-L、G5-10-A15S-R、G5-8-A15R-20-L、G5-16-A15R-20-L、G5-20-1E13S-20-R、G5-20-1E13S-20-L、G5-16-1E13S-20-R、G5-6-A13S-20-R、G5-16-1H15F-20-L、G5-16-1H15F-20-R、G5-16-AH15F-20-R、G5-16-AH15F-20-L、G5-6-6-AF15F-20-R、G5-6-6-AF15F-20-L、G5-30-6-1E13S-20-R、G5-30-6-1E13S-20-L。
G5双联齿轮泵型号：
G5-25-25-1E13S-20-R、G5-25-20-1E13S-20-R、G5-25-16-1E13S-20-R、G5-25-12-1E13S-20-R、G5-25-10-1E13S-20-R、G5-16-16-1E13S-20-L、G5-16-6-1E13F-20-L、G5-20-05-1H15S-20-L、G5-20-06-1S17S-20-L、G5-20-12-1E13F-20-L、G5-20-12-1E13F-20-R、G5-20-12-1E13F-20-L、G5-20-10-AFH15F-20-R、G5-20-10-AFH15F-20-L1FE13F-20-L、G5-25-10-1E13S-20-L、G5-16-16-1E13S-20-R、G5-16-16-1E13S-20-L、G5-16-8-1E13S-20-L、G5-20-06-1S17S-20-L、G5-16-6-1S17S-20-L、G5-30-6-1E13S-20-R、G51616-1E13S-20-L、G5-16-16-A15R-20-R、G5-25-10-1E13S-20-R、G5-25-10-1E13S-20-L、G5-20-5-1H15S-20-R、G5-20-5-1H15S-20-L、G5-16-10-1E13F-20-L、G5-16-10-1E13F-20-R、G5-20-6-1S17S-20-L、G5-20-6-1S17S-20-R、G5-10-10-1E13S-20-R、G5-10-10-1E13S-20-L、G5-16-16-1E13S-20-R、G5-12-10-1E13S-20-R、G5-12-10-1E13S-20-L、G5-6-6-AE13S-20-R、G5-6-6-AE13S-20-L。
G5多联齿轮泵型号：
G5-12-8-6-AH15S-20-R、G5-25-10-10-AE13S-20-R、G5-25-10-10-AE13S-20-L、G5-12-8-6-AH15S-20-L、G5-25-10-10-1E13S-20-R、G5-25-10-10-1E13S-20-L、G5-25-25-12-12-1E13F-20-L、G5-25-25-12-10-1E13F-20-L、G5-25-25-12-08-1E13F-20-L、G5-25-25-12-06-1E13F-20-L、G5-25-25-12-05-1E13F-20-L、G5-25-25-10-10-1E13F-20-L、G5-25-25-10-08-1E13F-20-L、G5-25-25-10-06-1E13F-20-L、G5-25-25-10-05-1E13F-20-L、G5-25-25-08-08-1E13F-20-L、G5-25-25-08-06-1E13F-20-L、G5-25-25-08-05-1E13F-20-L、G5-25-25-06-06-1E13F-20-L、G5-25-25-06-05-1E13F-20-L、G5-25-25-05-05-1E13F-20-L、G5-25-20-20-20-1E13F-20-L、G5-20-20-20-20-1E13F-20-L、G5-25-25-25-06-1E13F-20-L、G5-25-25-25-05-1E13F-20-L、G5-25-25-20-20-1E13F-20-L、G5-25-25-20-16-1E13F-20-L、G5-25-25-20-12-1E13F-20-L、G5-25-25-20-10-1E13F-20-R、G5-25-25-20-08-1E13F-20-L、G5-25-25-20-06-1E13F-20-L、G5-25-25-20-05-1E13F-20-L、G5-25-25-16-16-1E13F-20-L、G5-25-25-16-12-1E13F-20-L、G5-25-25-16-10-1E13F-20-L、G5-25-25-16-08-1E13F-20-L、G5-25-25-16-06-1E13F-20-L、G5-25-25-16-05-1E13F-20-L、G5-25-20-12-06-1E13F-20-R、G5-25-20-12-05-1E13F-20-R、G5-25-20-10-10-1E13F-20-R、G5-25-20-10-08-1E13F-20-R、G5-25-20-10-06-1E13F-20-R、G5-25-20-10-05-1E13F-20-R、G5-25-25-25-25-1E13F-20-L、G5-25-25-25-20-1E13F-20-L、G5-25-25-25-16-1E13F-20-L、G5-25-25-25-12-1E13F-20-L、G5-25-25-25-10-1E13F-20-L、G5-25-25-25-08-1E13F-20-L、G5-25-20-20-16-1E13F-20-R、G5-25-20-20-12-1E13F-20-R、G5-25-20-20-10-1E13F-20-R、G5-25-20-20-08-1E13F-20-R、G5-25-20-20-06-1E13F-20-R、G5-25-20-20-05-1E13F-20-R、G5-25-20-16-16-1E13F-20-R、G5-25-20-16-12-1E13F-20-R

      本公司供应G5齿轮泵、GPC4齿轮泵、GPC4-G5齿轮泵以及GM5齿轮马达、GMC4齿轮马达等，欢迎来电咨询选购！
