| 材质 | 不锈钢 |
|---|---|
| 产地 | 山东 |
| 电动功率 | 40 |
| 电压 | 220 |
| 工作温度 | 30 |
| 进出口径 | 35 |
| 流量 | 3 |
| 驱动方式 | 电动 |
| 吸程 | 25 |
| 性能 | 不阻塞 |
| 扬程 | 36 |
| 用途 | 管道泵 |
| 原理 | 管道泵 |
| 转速 | 2900 |
| 泵轴位置 | 卧式 |
| 叶轮数目 | 多级 |
| 品牌 | 鑫煤 |
| 型号 | xm |

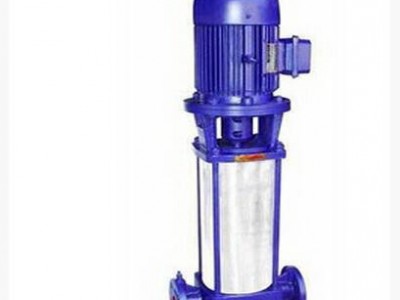

GDL型立式多级管道泵
详细说明：
GDL型立式多级管道泵在结构上采用了立式、分段形式，泵的吸入口与排出口设计在下方成一字形，并采用了最佳水力模型。是本厂设计人员根据ISG型立式离心泵及DL型立式多级离心泵的优点而设计的。GDL型多级泵特别适用于高层建筑多台泵并联使用，以减少单泵机组配带功率，简化电控设备。适用于高低层建筑的住宅、医院、旅馆、百货大楼、办公大楼等的消防、生活供水以及空调机组循环、冷却水输送等。GDL型泵泵的轴向力采用水力平衡方法解决，残余轴向力由一个球轴承承受，因而运转平稳、低噪音、占地面积小、装修方便。外筒体用不锈钢制造，外型美观大方，使用寿命长。

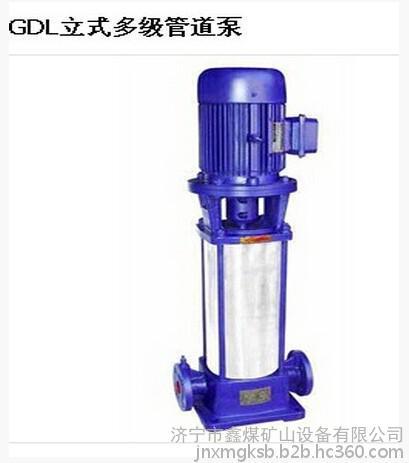

GDL多级管道泵
型号意义:
例如：50GDL18-15×6
50代表泵进出口径（mm）
GDL代表立式多级管道泵
18代表设计点流量（m3/h）
15代表单级扬程（m）
6代表泵级数
GDL多级管道泵性能参数表
型号 | 口径 (mm) | 级数 | 流量 （m3/h） | 扬程 （m） | 电机功率 （kw） |
25GDL2-12x3 | 25 | 3 | 2 | 36 | 1.1 |
25GDL2-12x4 | 4 | 48 | 1.1 | ||
25GDL2-12x5 | 5 | 60 | 1.5 | ||
25GDL2-12x6 | 6 | 72 | 1.5 | ||
25GDL2-12x7 | 7 | 84 | 2.2 | ||
25GDL2-12x8 | 8 | 96 | 2.2 | ||
25GDL2-12x9 | 9 | 108 | 2.2 | ||
25GDL2-12x10 | 10 | 120 | 3 | ||
25GDL2-12x11 | 11 | 132 | 3 | ||
25GDL2-12x12 | 12 | 144 | 3 | ||
25GDL2-12x13 | 13 | 156 | 4 | ||
25GDL2-12x14 | 14 | 168 | 4 | ||
25GDL2-12x15 | 15 | 180 | 4 | ||
25GDL4-11x3 | 3 | 4 | 33 | 1.1 | |
25GDL4-11x4 | 4 | 44 | 1.5 | ||
25GDL4-11x5 | 5 | 55 | 2.2 | ||
25GDL4-11x6 | 6 | 66 | 2.2 | ||
25GDL4-11x7 | 7 | 77 | 3 | ||
25GDL4-11x8 | 8 | 88 | 3 | ||
25GDL4-11x9 | 9 | 99 | 3 | ||
25GDL4-11x10 | 10 | 110 | 4 | ||
25GDL4-11x11 | 11 | 121 | 4 | ||
25GDL4-11x12 | 12 | 132 | 4 | ||
25GDL4-11x13 | 13 | 143 | 4 | ||
25GDL4-11x14 | 14 | 154 | 5.5 | ||
25GDL4-11x15 | 15 | 165 | 5.5 | ||
40GDL6-12x3 | 40 | 3 | 6 | 36 | 1.5 |
40GDL6-12x4 | 4 | 48 | 2.2 | ||
40GDL6-12x5 | 5 | 60 | 2.2 | ||
40GDL6-12x6 | 6 | 72 | 3 | ||
40GDL6-12x7 | 7 | 84 | 3 | ||
40GDL6-12x8 | 8 | 96 | 4 | ||
40GDL6-12x9 | 9 | 108 | 4 | ||
40GDL6-12x10 | 10 | 120 | 4 | ||
40GDL6-12x11 | 11 | 132 | 5.5 | ||
40GDL6-12x12 | 12 | 144 | 5.5 | ||
40GDL6-12x13 | 13 | 156 | 7.5 | ||
40GDL6-12x14 | 14 | 168 | 7.5 | ||
40GDL6-12x15 | 15 | 180 | 7.5 | ||
50GDL12-15x2 | 50 | 2 | 12 | 30 | 2.2 |
50GDL12-15x3 | 3 | 45 | 3 | ||
50GDL12-15x4 | 4 | 60 | 4 | ||
50GDL12-15x5 | 5 | 75 | 5.5 | ||
50GDL12-15x6 | 6 | 90 | 5.5 | ||
50GDL12-15x7 | 7 | 105 | 7.5 | ||
50GDL12-15x8 | 8 | 120 | 7.5 | ||
50GDL12-15x9 | 9 | 135 | 11 | ||
50GDL12-15x10 | 10 | 150 | 11 | ||
50GDL18-15x2 | 2 | 18 | 30 | 3 | |
50GDL18-15x3 | 3 | 45 | 4 | ||
50GDL18-15x4 | 4 | 60 | 5.5 | ||
50GDL18-15x5 | 5 | 75 | 7.5 | ||
50GDL18-15x6 | 6 | 90 | 7.5 | ||
50GDL18-15x7 | 7 | 105 | 11 | ||
50GDL18-15x8 | 8 | 120 | 11 | ||
50GDL18-15x9 | 9 | 135 | 15 | ||
50GDL18-15x10 | 10 | 150 | 15 | ||
65GDL24-12x2 | 65 | 2 | 24 | 24 | 3 |
65GDL24-12x3 | 3 | 36 | 4 | ||
65GDL24-12x4 | 4 | 48 | 5.5 | ||
65GDL24-12x5 | 5 | 60 | 7.5 | ||
65GDL24-12x6 | 6 | 72 | 7.5 | ||
65GDL24-12x7 | 7 | 84 | 11 | ||
65GDL24-12x8 | 8 | 96 | 11 | ||
65GDL24-12x9 | 9 | 108 | 15 | ||
65GDL24-12x10 | 10 | 120 | 15 | ||
65GDL24-12x11 | 11 | 132 | 15 | ||
65GDL24-12x12 | 12 | 144 | 18.5 | ||
80GDL36-12x2 | 80 | 2 | 36 | 24 | 4 |
80GDL36-12x3 | 3 | 36 | 5.5 | ||
80GDL36-12x4 | 4 | 48 | 7.5 | ||
80GDL36-12x5 | 5 | 60 | 11 | ||
80GDL36-12x6 | 6 | 72 | 11 | ||
80GDL36-12x7 | 7 | 84 | 15 | ||
80GDL36-12x8 | 8 | 96 | 15 | ||
80GDL36-12x9 | 9 | 108 | 18.5 | ||
80GDL36-12x10 | 10 | 120 | 18.5 | ||
80GDL54-14x2 | 2 | 54 | 28 | 7.5 | |
80GDL54-14x3 | 3 | 42 | 11 | ||
80GDL54-14x4 | 4 | 56 | 15 | ||
80GDL54-14x5 | 5 | 70 | 18.5 | ||
80GDL54-14x6 | 6 | 84 | 18.5 | ||
80GDL54-14x7 | 7 | 98 | 22 | ||
80GDL54-14x8 | 8 | 112 | 30 | ||
80GDL54-14x9 | 9 | 126 | 30 | ||
80GDL54-14x10 | 10 | 140 | 37 | ||
100GDL72-14x2 | 100 | 2 | 72 | 28 | 11 |
100GDL72-14x3 | 3 | 42 | 15 | ||
100GDL72-14x4 | 4 | 56 | 18.5 | ||
100GDL72-14x5 | 5 | 70 | 22 | ||
100GDL72-14x6 | 6 | 84 | 30 | ||
100GDL72-14x7 | 7 | 98 | 30 | ||
100GDL72-14x8 | 8 | 112 | 37 | ||
100GDL72-14x9 | 9 | 126 | 37 | ||
100GDL72-14x10 | 10 | 140 | 45 |
