| 汽蚀余量 | 5.2（m） |
|---|---|

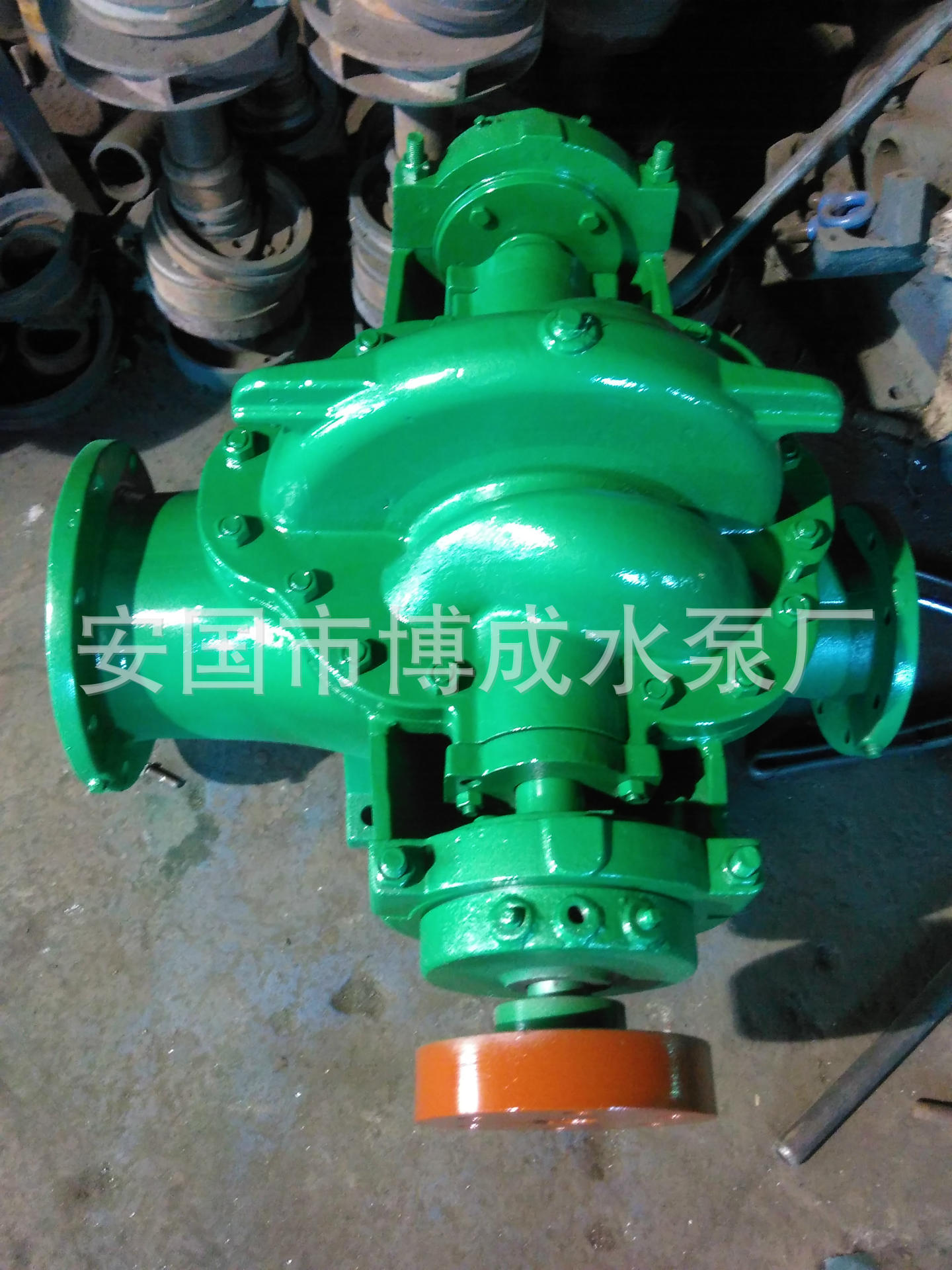

| 结构原理 | 中开泵 |
| 重量 | 709（kg） |
| 材质 | 铸铁 |
| 电压 | 380（V） |
| 功率 | 90（kw） |
| 规格 | 泵头,成泵 |
| 级数 | 单级 |
| 流量 | 790（m3/h） |
| 排出口径 | 420（mm） |
| 驱动方式 | 电动 |
| 输送介质 | 清水泵 |
| 吸入口径 | 420（mm） |
| 性能 | 大流量 |
| 扬程 | 32（m） |
| 用途 | 流程泵 |
| 转速 | 1450 |
| 泵轴位置 | 卧式 |
| 叶轮数目 | 1 |

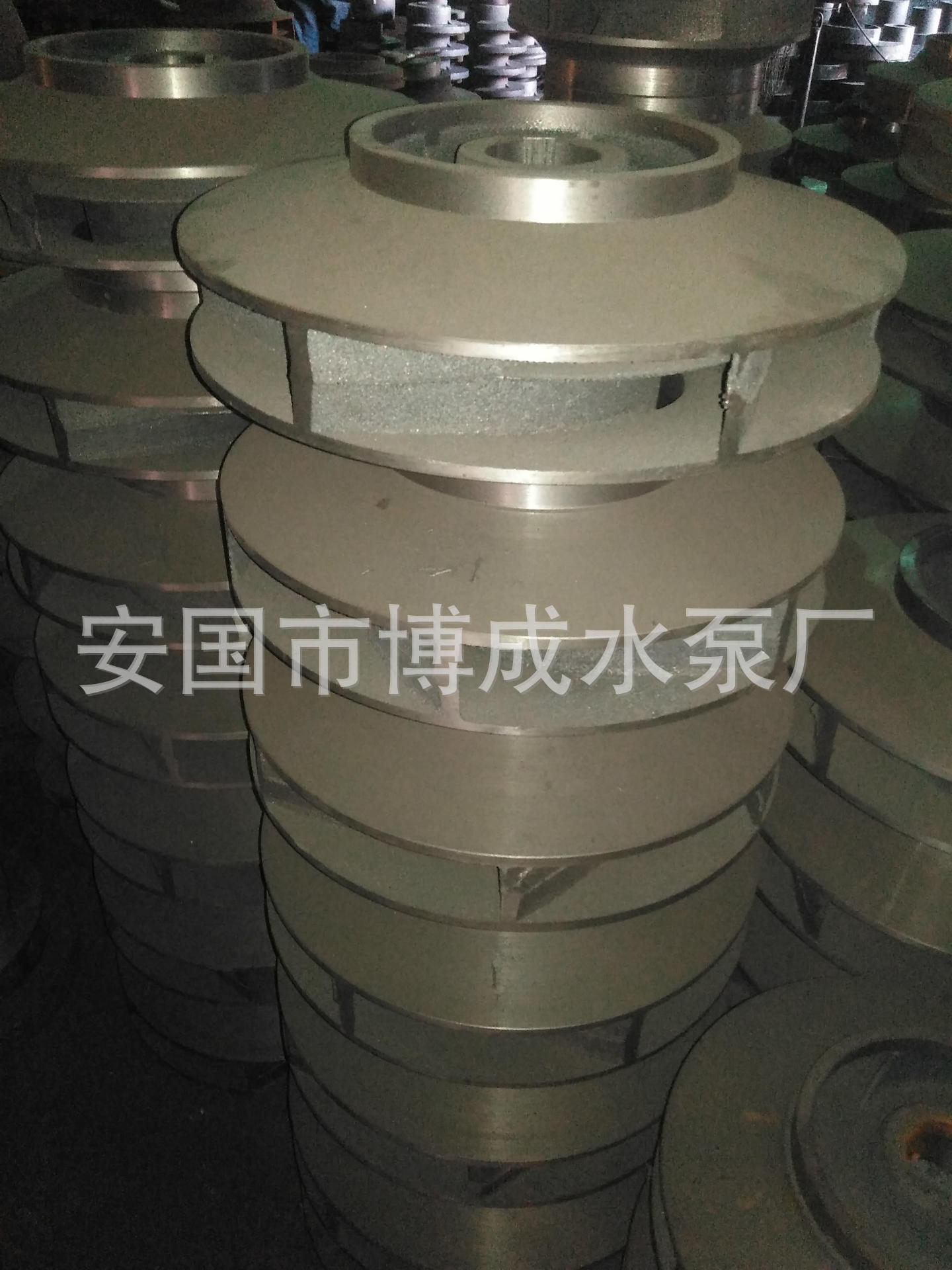

| 叶轮结构 | 封闭式叶轮 |
| 叶轮吸入方式 | 双吸式 |
| 品牌 | 博成 |
| 型号 | 12SH-13 |
| 型号 | 流量 Q | 扬程 H | 转速 n | 功率 (KW) | 效率η | 汽蚀余量 (NPSH)r(m) | 备注 （老型号） | |
| 轴功率 | 电机功率 | |||||||
| 100S90 | 80 | 90 | 2950 | 30.1 | 37 | 65 | 2.5 | |
| 100S90A | 72 | 75 | 23 | 30 | 64 | 2.5 | ||
| 150S100 | 160 | 100 | 59.8 | 75 | 73 | 3.5 | ||
| 150S78 | 160 | 78 | 45 | 55 | 73.5 | 3.5 | 6sh-6 | |
| 150S78A | 144 | 62 | 33.8 | 45 | 72 | 3.5 | 6sh-6 A | |
| 150S50 | 160 | 50 | 27.3 | 37 | 80 | 3.9 | 6sh-9 | |
| 150S50A | 144 | 40 | 20.9 | 30 | 75 | 3.9 | 6sh-9 A | |
| 150S50B | 133 | 36 | 18.6 | 22 | 70 | 3.9 | 6sh-9B | |
| 200S95A | 280 | 95 | 91.7 | 110 | 79.2 | 5.3 | 8sh-6A | |
| 200S95B | 270 | 75 | 73.5 | 90 | 75 | 5.3 | 8sh-6B | |
| 200S63 | 280 | 63 | 58.3 | 75 | 82.7 | 5.8 | 8sh-9 | |
| 200S63A | 270 | 46 | 45.1 | 55 | 75 | 5.8 | 8sh-9 A | |
| 200S42 | 280 | 42 | 38.1 | 45 | 84.2 | 6 | 8sh-13 | |
| 200S42A | 270 | 36 | 33.1 | 37 | 80 | 6 | 8sh-13A | |
| 250S65 | 485 | 65 | 1450 | 109 | 132 | 78.6 | 3 | 10sh-6 |
| 250S65A | 468 | 54 | 89.4 | 110 | 77 | 3 | 10sh-6A | |
| 250S39 | 485 | 39 | 61.5 | 75 | 83.6 | 3.2 | 10sh-9 | |
| 250S39A | 468 | 30.5 | 49.3 | 55 | 79 | 3.2 | 10sh-9 A | |
| 250S24 | 485 | 24 | 36.9 | 45 | 85.8 | 3.5 | 10sh-13 | |
| 250S24A | 414 | 20.3 | 27.6 | 37 | 83 | 3.5 | 10sh-13 A | |
| 250S14 | 485 | 14 | 21.5 | 30 | 85.8 | 3.8 | 10sh-19 | |
| 250S14A | 432 | 11 | 15.8 | 18.5 | 82 | 3.8 | 10sh-19A | |
| 300S110 | 790 | 110 | 295.7 | 440 | 80 | 4 | ||
| 300S90 | 790 | 90 | 242.8 | 315 | 79.6 | 4 | 12sh-6 | |
| 300S90A | 756 | 78 | 217 | 280 | 74 | 4 | 12sh-6 A | |
| 300S90B | 720 | 67 | 180 | 220 | 73 | 4 | 12-sh6B | |
| 300S58 | 790 | 58 | 149.9 | 180 | 84.2 | 4.4 | 12sh-9 | |
| 300S58A | 720 | 49 | 118.6 | 160 | 81 | 4.4 | 12sh-9A | |
| 300S58B | 684 | 43 | 100 | 132 | 80 | 4.4 | 12sh-9B | |
| 300S32 | 790 | 32 | 79.2 | 110 | 86.8 | 4.6 | 12sh- 13 | |
| 300S32A | 720 | 26 | 60.7 | 75 | 84 | 4.6 | 12sh-13A | |
| 300S19 | 790 | 19 | 47 | 55 | 86.8 | 5.2 | 12sh- 19 | |
| 300S19A | 720 | 16 | 39.2 | 45 | 80 | 5.2 | 12sh-19A | |
| 300S12 | 790 | 12 | 30.4 | 37 | 84.8 | 5.5 | 12sh-28 | |
| 300S12A | 684 | 10 | 3.9 | 30 | 78 | 5.5 | 12sh-28 A | |
| 350S125 | 1260 | 125 | 534 | 710 | 80.5 | 5.4 | 14sh-6 | |
| 350S125A | 1181 | 112 | 462 | 630 | 78 | 5.4 | 14sh-6A | |
| 350S125B | 1098 | 96 | 373 | 500 | 77 | 5.4 | 14sh-6B | |
| 350S75 | 1260 | 75 | 303 | 355 | 85.2 | 5.8 | 14sh-9 | |
| 350S75A | 1170 | 65 | 247 | 280 | 84 | 5.8 | 14sh-9A | |
| 350S75B | 1080 | 55 | 197 | 220 | 82 | 5.8 | 14sh-9B | |
| 350S44 | 1260 | 44 | 173 | 220 | 87.5 | 6.3 | 14sh-13 | |
| 350S44A | 1116 | 36 | 131 | 160 | 84 | 6.3 | 14sh-13A | |
| 350S26 | 1260 | 26 | 102 | 132 | 87.5 | 6.7 | 14sh-19 | |
| 350S26A | 1116 | 21.5 | 78.8 | 90 | 83 | 6.7 | 14sh-19A | |
| 350S16 | 1260 | 16 | 64.5 | 75 | 85.3 | 7.1 | 14sh-28 | |
| 350S16A | 1044 | 13.4 | 48.8 | 55 | 48 | 7.1 | 14sh-28A | |
| 500S98 | 2020 | 95 | 970 | 678 | 800 | 79.5 | 4 | 20sh-6 |
| 500S98A | 1872 | 83 | 540 | 630 | 78.5 | 4 | 20sh-6A | |
| 500S98B | 1746 | 74 | 452 | 560 | 78 | 4 | 20sh-6B | |
| 500S59 | 2020 | 59 | 391 | 450 | 83 | 4.5 | 20sh-9 | |
| 500S59A | 1872 | 49 | 333 | 400 | 75 | 4.5 | 20sh-9A | |
| 500S59B | 1746 | 40 | 257 | 315 | 74 | 4.5 | 20sh-9B | |
| 500S35 | 2020 | 35 | 219 | 280 | 88 | 4.8 | 20sh-13 | |
| 500S35A | 1746 | 27 | 151 | 220 | 85 | 4.8 | 20sh-13A | |
| 500S22 | 2020 | 22 | 144.1 | 185 | 84 | 5.2 | 20sh-19 | |
| 500S22A | 1746 | 17 | 101 | 132 | 80 | 5.2 | 20sh-19A | |
| 500S13 | 2020 | 13 | 86.2 | 110 | 83 | 5.7 | 20sh-28 | |
| 600S75 | 3170 | 75 | 727 | 800 | 89 | 7.5 | 24sh-9 | |
| 600S75A | 2880 | 65 | 580 | 630 | 88 | 7.5 | 24sh-9A | |
| 600S47 | 3170 | 47 | 465 | 560 | 88 | 7.5 | 24sh-13 | |
| 600S32 | 3170 | 32 | 310 | 400 | 89 | 7.5 | 24sh-19 | |
| 600S32A | 2880 | 27 | 238 | 280 | 89 | 7.5 | 24sh-19A | |
| 600S22 | 3170 | 22 | 223 | 280 | 85 | 7.5 | 24sh-28 | |
| 600S22A | 2880 | 18.2 | 168.5 | 200 | 84.5 | 7.5 | 24sh-28A | |
| 800S32 | 5500 | 32 | 730 | 700 | 84 | 32sh-19 | ||
| 800S-32A | 5310 | 29 | 570 | 84 | 32sh-19 A | |||

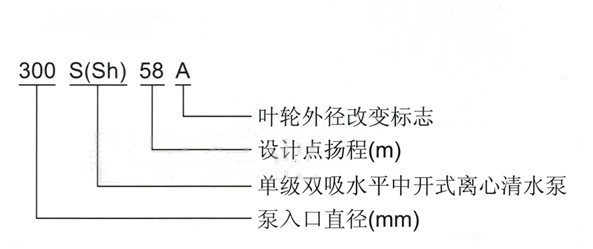

型号意义
安国市博成水泵厂从事泵类产品的专业生产厂家，集设计开发、生产加工、销售服务为一体。产品从设计、水力模型实验、铸造、机加工、检验、装配、测试、安装、调试、运行到产品的售后服务严格按照质量管理认证体系的要求进行。
安国市博成水泵厂主要生产ZJ、ZJL、ZGB、SP、SPR型渣浆泵。ZJW压滤机入料泵、IS ISG IRG清水泵.N、NB型冷凝泵、SH、S型双吸泵；D、DG、DL、GC型多级泵；PW、PWL型污水泵；PN、PNL型泥浆泵；IH、FB型化工泵；LP、LPT、YW型液下排污泵；QW、WQ型污水排污泵；ZX、ZW、WFB型自吸泵；UHB砂浆泵、HW型混流泵等工业水泵。带加工定制各种泵轴等配件。
产品畅销全国各地的电力、冶金、矿山、煤炭、石油、化工、污水处理等行业。拥有完整、科学的质量管理体系。安国市博成水泵厂的诚信、实力和产品质量获得业界的认可。欢迎各界朋友莅临参观、指导和业务洽谈。具体详情请联系厂电：0312-3426344 手机：13582063481QQ:676564231博成水泵随时欢迎您的光临.
