PMM8053B电磁辐射分析仪性能特点
哈扶贸易（上海）有限公司
：张工
：
PMM8053B电磁辐射分析仪性能特点

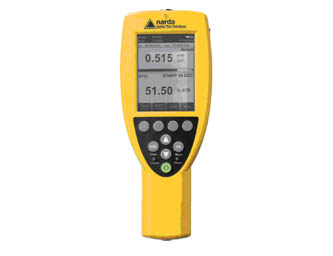

PMM8053B电磁辐射分析仪
性能特点
德国narda PMM8053B电磁辐射分析仪主机功能描述：
频率范围：5Hz-40GHz
动态范围：＞140Db
单位：V/m，KV/m，mw/cm2，W/m2，A/m，Ut，mT
LCD显示数据：测量范围：X，Y，Z三个方向的值，百分比和总值，内置时钟时间显示，显示探头型号及校准时间，柱状图模拟强度现实对应实时测量值。
采样时间：150ms with 80Hz filter，250 ms with 40Hzfilter，450 ms with 20Hz filter，900 ms with 10Hzfilter
存储功能：单文件存储32700个测量数据（8100个多文件存储测量数据）
报警功能：用户可设定阙值，声音和屏幕闪烁信号报警。
功 能：zui小值，zui大值和平均值
平均模式：算术平均，均方根（RMS）平均，手动和空间平均
平均时间：32个采样点平均，30秒、1分、2分、3分、6分、10分、15分、30分
内置可充电（NiMh）电池（5x1.2V）
使用时间：正常模式：20小时，、省电模式：40小时
接 口：RS232接口（可用于遥控、校准和存储器程序更新）
测量温度：-10～+40℃ 保存温度：-20～+70℃
德国narda PMM8053B电磁辐射分析仪工频探头描述：
应 用：可在同一探头测量电场和磁场，频率范围从5Hz-100KHz，带有E2PROM校准数据，用户可使用标识Marker功能对频率和场强进行精确的测量，1nT-10Mt频谱分析功能，7个带定宽选择。
电 场：频率范围：5Hz-100KHz
量 程：0.01V/m-100KV/m
过载保护：200kV/m
动态范围：＞120Db
分 辨 率：0.01V/m，
敏 感 性：0.01V/m
检测能力：独立连续24小时检测
内置校准：内置E2PROM校准数据
磁 场：频率范围：5Hz-100KHz
量 程：1Nt-10mT
过载保护：20mT
动态范围：＞120Db
分 辨 率：1nT
敏 感 性：1nT
检测能力：独立连续24小时检测
内置校准：内置E2PROM校准数据
可用于高压线等低频场强的测量
德国narda PMM8053B电磁辐射分析仪射频测量电场探头描述：
应 用：测量频率覆盖广播、电视、电台、手机基站、微波炉、电磁炉等信号
测量精度：0.3V/m，可适合较好的环境监测和产品质量检侧要求
探头选择：
低频电-磁场测量探头选型（工频测量）
EHP-50C 电-磁场：5Hz-100KHz，各向同性，同时显示XYZ值
量程：0.01v/m-100Kv/m，1nT-10mT
频谱分析功能，7个带定宽选择独立连续24小时检测功能。
射频测量电场探头选型
EP-105 频率：100K-1GHz ： 量程：0.05-50v/m,各向同性
EP-300 频率：100K-3GHz ： 量程：0.1-300v/m,各向同性.
EP-330 频率：100K-3GHz ： 量程：0.3-300v/m,各向同性.
EP-301 频率：100K-3GHz ： 量程：1-300v/m,各向同性.
EP-183 频率：1M-18GHz ： 量程：0.8-800v/m,各向同性.
EP-408 频率：1M-40GHz ： 量程：0.8-800v/m,各向同性，
EP-33M 频率：700M-3GHz ： 量程：0.3-300v/m,各向同性
EP-44M 频率：100K-800MHz ： 量程：0.25-300v/m,各向同性
射频测量磁场探头选型
HP-102 频率：30M-1GHz ： 量程：0.01-20A/m,各向同性
HP-032 频率：100K-30MHz ： 量程：0.01-20A/m,各向同性
