3SNS型柱塞式砂浆泵具有压力高、流量大、工作稳定的特点，应用于输送、喷涂各类特性与用途不同的干混砂浆，包括各种特殊砂浆、石膏砂浆，同时用于压力灌注水泥浆、水泥砂浆。

     柱塞式砂浆泵动力强劲、泵送平滑、磨损小，应用范围广，适用于现场搅拌砂浆，预拌干混砂浆、粘结砂浆、保温、防火砂浆、地表砂浆、自流平砂浆的施工，应用于坝基帷注浆，边坡锚固注浆、隧道及地下工程桩基、土钉墙（围坡）的洞孔注浆。

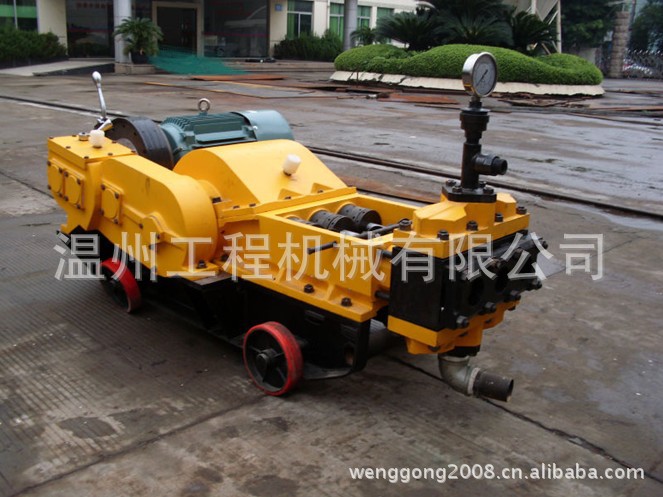

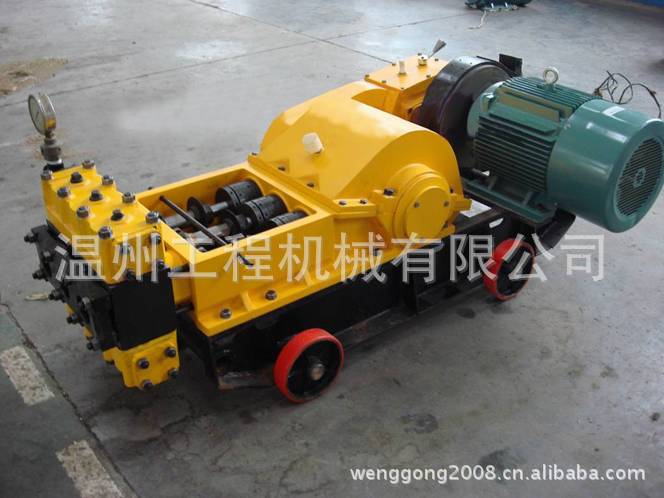

    3SNS piston mortar pump have features of high pressure, large flow, stable working. They're applied to conveying and plastering various kinds of features and uses of different dry ready-mixed mortar, including various special mortars, gypsum mortar. They're also used for pressure grouting cement slurry and cement mortar.

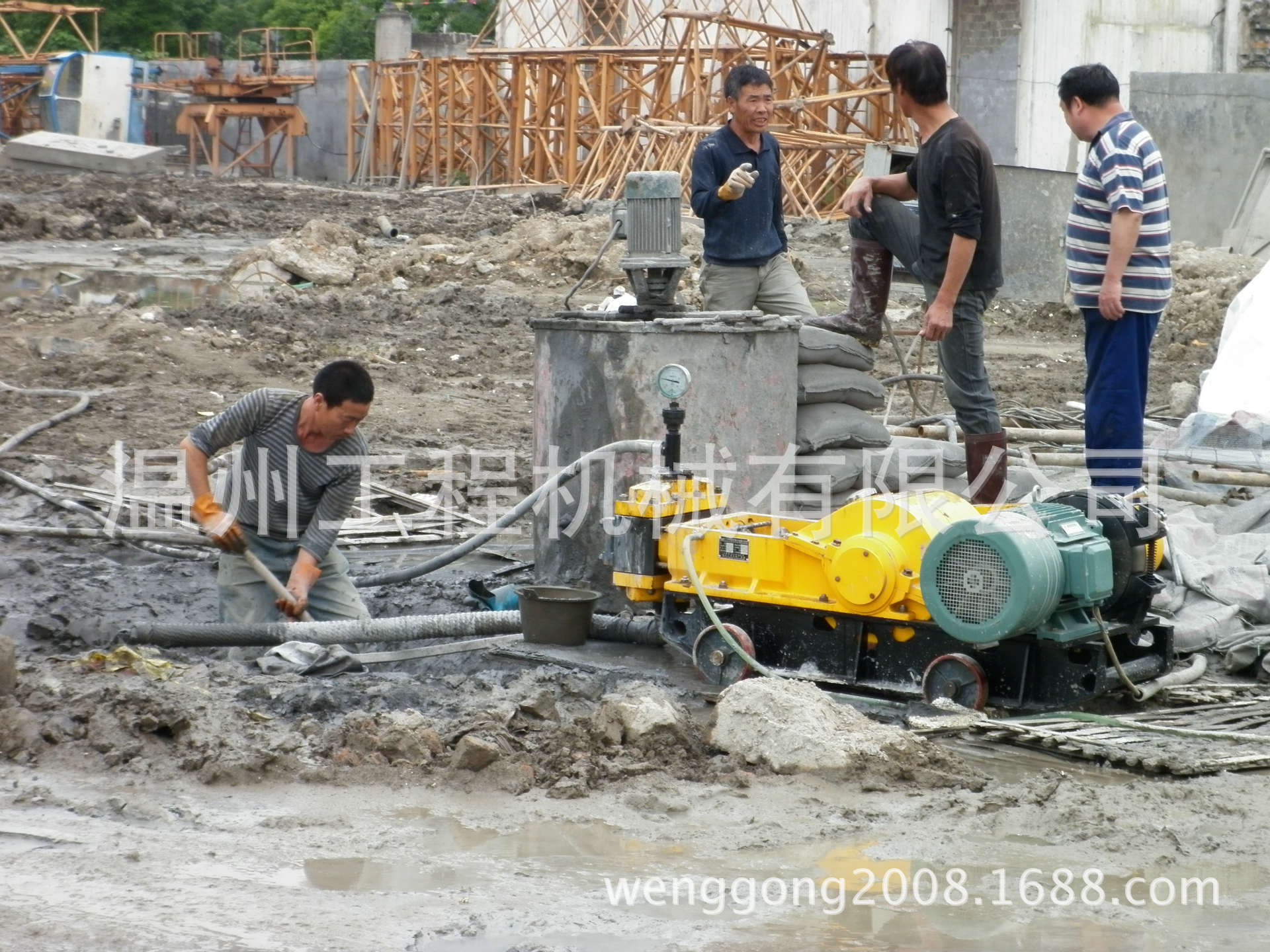

    3SNS piston mortar pump have strong power, smooth pumping, small abrasion, wide range of applications. They’re applicable for on-site mixing mortar, ready-mixed dry mortar, adhesive mortar, thermal insulation mortar, fireproof mortar, floor surface mortar, self-leveling mortar construction. They're widely used in the dam foundation curtain grouting, slope anchor grouting, holes grouting in tunnel and underground project pile, soil nail wall (circumference slope).

电源  Supply power                                  400V  50Hz

电机功率 Motor power                               18.5kw

柱塞数 Piston quantity                               3piece

理论排量 Maximum output                          76/207L/min

输送压力 Delivery pressure                         12/4Mpa

水平输送距离 Horizontal delivery distance      0-380m

垂直输送距离 Vertical delivery distance          0-150m

进道直径 Feeding hose diameter                  64mm

排道直径 Discharging hose diameter             32mm

重量 Net weight                                         930kg

外型尺寸 Dimension (L×W×H)                     1800*945*705mm

注：以上数据只作参考，因选用砂浆的理化性能差别，其产生的各项数值也不相同。

Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
