| 材质 | PVC |
|---|---|
| 电机功率 | 180W |
| 额定流量 | 80L/min |
| 极限压力 | 0.098Mpa |
| 类型 | 真空泵 |
| 驱动方式 | 电动 |
| 输送介质 | 清水泵 |
| 性能 | 自动,无泄露,耐磨,耐腐蚀 |
| 扬程 | 10m |
| 用途 | 抽真空 |
| 品牌 | 上海知信 |
| 型号 | SHZ-Ⅲ |
| 加工定制 | 否 |

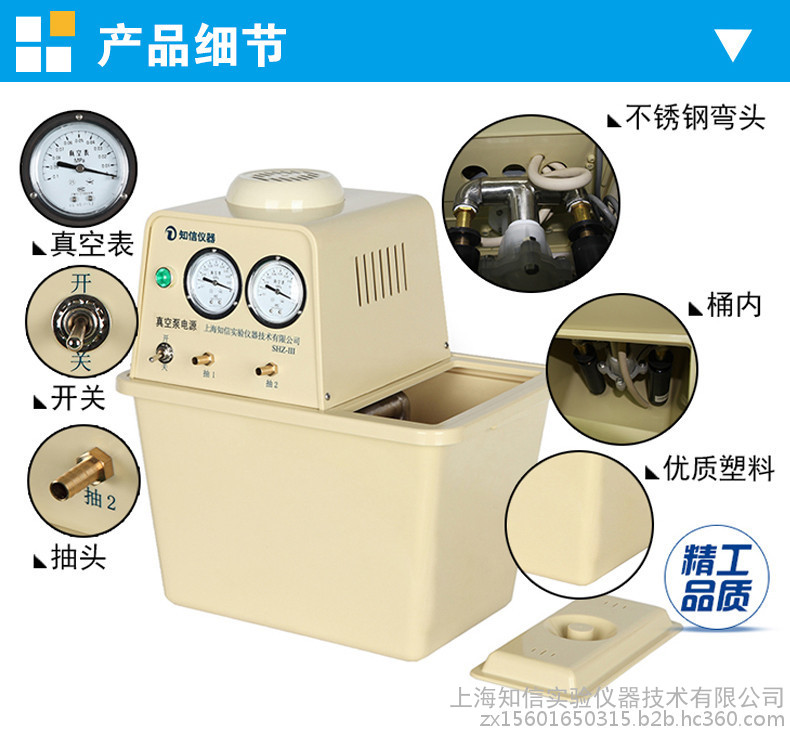

循环水真空泵
用途特点
此循环泵以水为工作介质，利用流体射流技术产生负压而进行工作的一种新型真空（抽气）泵，用作真空回流、真空干燥，特别对于沸点较高的水溶液产生气体也能正常循环抽气。
次循环泵采用PVC材料，经久耐用，不易腐蚀。
| 型号 参数 | SHZ-Ⅲ |
| 电机功率 | 180W、220V/50Hz |
| 流量 | 80L/min |
| 扬程 | 10M |
| **大真空度 | 0.098Mpa |
| 储水箱容积 | 15L |
| 抽气头数 | 2 |

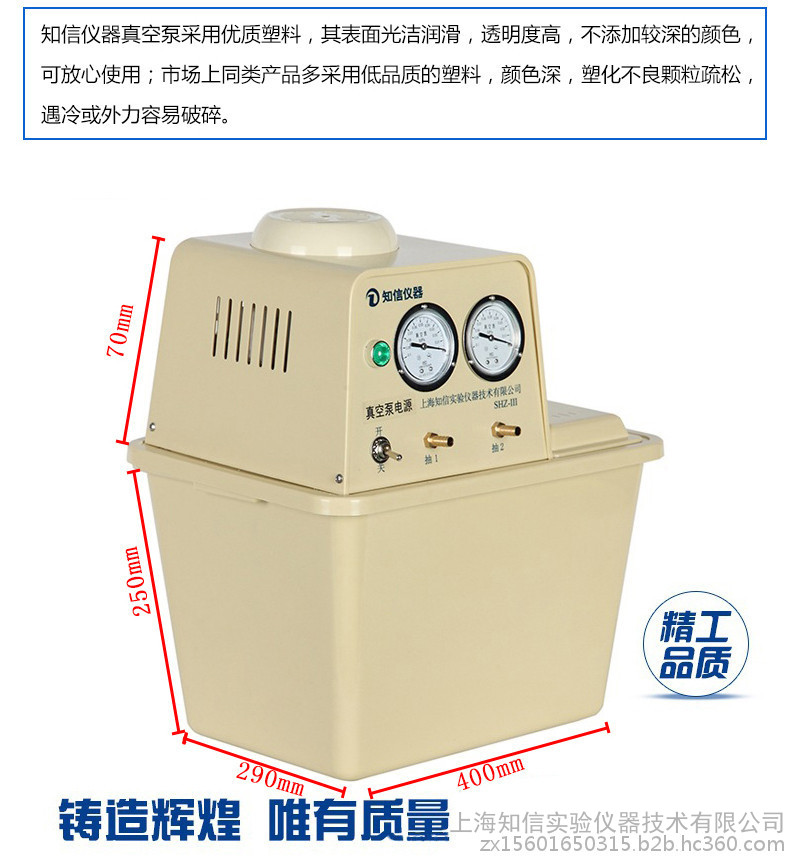

| 外形尺寸 | 400×390×450mm |
| 全机重量 | 10.5kg |
Circulating water vacuum pump
Characteristics
The circulating pump is new type of vacuum (pumping) pump and working medium is water, using the fluid jet technology to produce negative pressure. The circulating pump can be used as vacuum reflow and vacuum drying, especially for aqueous solution of high boiling point gases.
This circulation pump uses non-renewable PVC material that is durable and not easily corroded.
| Parameter Model | SHZ-III |
| Motor power、Powersupply | 180W、220W/50Hz |
| Flow | 80L/min |
| Lift | 10M |
| Maximum vacuum degree | 0.098Mpa |
| Volume of storage tank | 15L |
| Pumping head | 2 |
| Outline dimension | 400×390×450mm |
| Weight | 10.5kg |
