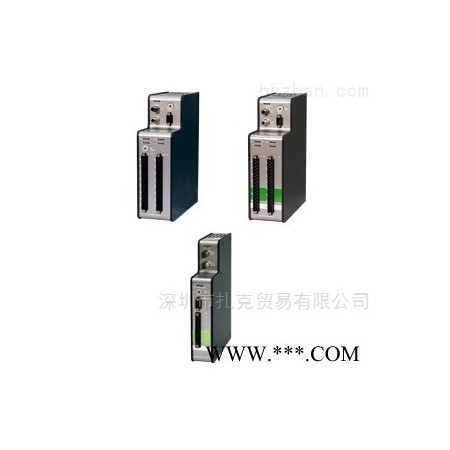

iba ag ibaPADU-8
常规功能
采样率1kHz
凭借每个通道一个的 A/D 转换器同时进行数据采集，16bit分辨率
3Mbit ibaNet协议
使用光纤多可以级联 8 台设备
使用 RJ11 接口连接笔记本电脑
具有8个数字和8个模拟电压输入的输入模块
常规功能ibaPADU-8
采样率1kHz
凭借每个通道一个的 A/D 转换器同时进行数据采集，16bit分辨率
3Mbit ibaNet协议
使用光纤多可以级联 8 台设备
使用 RJ11 接口连接笔记本电脑
ibaPADU -8-AI-U
8 个数字电压输入和 8 个模拟电压输入
输入电平 ±10 V、±24 V 或 ±60 V
输入阻抗 100 kΩ 或 1 MΩ
滤波器：RC 低通 4 kHz（永发久）；数字抗混叠滤波器和数字低通滤波器（可选，具体取决于设备模式）
ibaPADU -8AI-I
8 个数字电流输入端和 8 个模拟电流输入端
输入电平 ±20 mA
输入阻抗 50 Ω
滤波器：RC 低通 4 kHz（永发久）
ibaPADU-D-8Input module with 8 digital inputs and 8 analog current inputs for ibaNet 32 Mbit flex
常规特性
输入端电气隔离，单端式
采样率高可达 40 kHz，可自由调
凭借每个通道一个的 A/D 转换器同时进行数据采集，16 bit 分辨率
滤波器：RC 低通 40 kHz（永发久）；模拟和数字抗混叠滤波器（附加）
数字输入的去抖动滤波器（附加）
32Mbit Flex模式ibaNet 协议
一条环形拓扑多可连接15个设备
ibaPADU-D-8-AI-U
8 个数字输入和 8 个模拟电压输入
输入电平 ±2.5 V、±10 V、±24 V 或 ±60 V
输入阻抗 100 kΩ 或 1 MΩ
ibaPADU-D-8AI-I
8 个数字输入和 8 个模拟电流输入
输入电平 ±20 mA、0..20 mA、4..20 mA
输入阻抗 50 Ω
ibaPADU-4-AI-UCompact device for acquisition and recording of fast analog signals
常规特性
4 个电气隔离的模拟输入
可以调节每个通道的输入信号电平 ±250 mV、±500 mV、±1 V、±2.5 V、±5 V、±10 V、±24 V
16 bit 分辨率
采样率高达 100 kHz，可在点到点连接中自由调节
实际并行测量的值通过每个通道的 A/D 转换器采集
可以激活抗混叠滤波器
32Mbit Flex模式ibaNet 协议
ibaPADU-C 是用于移动数据采集和记录的电网独立测量模块。使用易于操纵的紧凑型设备，可以就在出现模拟和数字信号的位置对其进行记录。
紧凑型测量模块概览| Device | Input signal range (adjustable) | Sampling rate | Input impedance | Inputs/outputs | ibaNet protocol |
|---|---|---|---|---|---|
| ibaPADU-4-AI-U | ±250 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, ±24 V | up to 100 kHz | 100 kΩ | 4 AI | 32Mbit Flex |
| ibaPADU-D-8AI-U | ±2.5 V, ±10 V, ±24 V, ±60 V | up to 40 kHz | 100 kΩ or 1 MΩ | 8 AI + 8 DI | 32Mbit Flex |
| ibaPADU -8AI-U | ±10 V, ±24 V, ±60 V | 1 kHz | 100 kΩ or 1 MΩ | 8 AI + 8 DI | 3Mbit |
| ibaPADU-D-8AI-I | ±20 mA, 0..20 mA, 4..20 mA | up to 40 kHz | 50 Ω | 8 AI + 8 DI | 32Mbit Flex |
| ibaPADU -8AI-I | ±20 mA | 1 kHz | 50 Ω | 8 AI + 8 DI | 3Mbit |
Order no. Name Description
31.001.300 ibaPDA-Request-HPCI HPCI system, HPCI symbolic request channels
31.001.302 ibaPDA-Request-HiPAC Symbolic request channels for Danieli HiPAC PLC
31.001.303 ibaPDA-Request-TwinCAT TwinCAT symbolic request via UDP or ibaBM-eCAT
31.001.310 ibaPDA-Request-S7-DP/PN Simatic S7 system, S7 symbolic request via ibaBM-DP/PN
31.001.311 ibaPDA-Request-S7-UDP Simatic S7 system, S7 symbolic request via UDP, ibaPDA-Interface-S7-TCP/UDP required
31.001.320 ibaPDA-Request-SD Simadyn-D system, Simadyn-D symbolic request channels
31.001.330 ibaPDA-Request-TDC TDC system, Simatic TDC request via FO connection
31.001.340 ibaPDA-Request-X-Pact X-Pact system, X-Pact interface to PROBAS system
31.001.360 ibaPDA-Request-FM458/TDC FM458/TDC system, FM458/TDC request via Profibus
31.001.380 ibaPDA-Request-DTBox-128 Dualis DTBox, 128 signals
31.001.381 ibaPDA-Request-DTBox-1024 Dualis DTBox, 1024 signals
31.001.382 ibaPDA-Request-DTBox-unlimited Dualis DTBox, unlimited number of signals
| Order no. | Name | Description |
|---|---|---|
| 13.122000 | ibaBM-CAN | Bus monitor for CAN/CANopen |
| 13.121001 | ibaBM-DP | Bus monitor for PROFIBUS |
| 13.321001 | ibaBM-DP-Upgrade-8Slaves | Function extension ibaBM-DP: Additional 8 slaves |
| 13.321011 | ibaBM-DP-Upgrade-Simulation | Function extension ibaBM-DP: Simulation mode |
| 13.321021 | ibaBM-DP-Upgrade-Redundancy | Function extension ibaBM-DP: Redundancy mode |
| 13.321031 | ibaBM-DP-Upgrade-Mirror | Function extension ibaBM-DP: Mirror mode |
| 13.321032 | ibaBM-DP-Upgrade-Mapping | Function extension ibaBM-DP: Mapping mode |
| 13.127000 | ibaBM-eCAT | Bus monitor for EtherCAT |
| 13.120010 | ibaBM-ENetIP | Bus monitor for Ethernet/IP |
| 13.120000 | ibaBM-PN | Bus monitor for PROFINET |
| 13.120710 | ibaBM-DDCS | Bus monitor for DDCS drive bus |
| Order no. | Name | Description |
|---|---|---|
| 10.124030 | ibaPADU-S-CM | CPU for modular data acquisition system |
| 10.124021 | ibaPADU-S-IT-2x16 | CPU for control applications |
| 10.125010 | ibaCMU-S | CPU for Condition Monitoring applications |
| 10.150000 | ibaPQU-S | CPU for Power Quality Monitoring applications |
| 10.170000 | ibaDAQ-S | CPU for stand-alone data acquisition |
| Order no. | Name | Description |
|---|---|---|
| 10.124100 | ibaMS16xAI-10V | Process coupling: Modular System 16 AI signals,16Bit,+/-10V |
| 10.124101 | ibaMS16xAI-10V-HI | Process coupling: Modular System 16 AI signals,16Bit,+/-10V-HI |
| 10.124102 | ibaMS16xAI-24V | Process coupling: Modular System 16 AI signals,16Bit,+/-24V |
| 10.124103 | ibaMS16xAI-24V-HI | Process coupling: Modular System 16 AI signals,16Bit,+/-24V-HI |
| 10.124110 | ibaMS16xAI-20mA | Process coupling: Modular System 16 AI signals,16Bit,20mA |
| 10.124120 | ibaMS4xADIO | Process coupling: Modular System 4x AI/AO plus 4xDI/DO,16Bit, U/I |
| 10.124150 | ibaMS16xAO-10V | Process coupling: Modular System 16 AO signals,16Bit,+/-10V |
| 10.124160 | ibaMS16xAO-20mA | Process coupling: Modular System 16 AO signals,16Bit,20mA |
| 10.124200 | ibaMS16xDI-220V | Process coupling: Modular System 16 DI signals,+/-220V |
| 10.124201 | ibaMS16xDI-24V | Process coupling: Modular System 16 DI signals,+/-24V |
| 10.124210 | ibaMS32xDI-24V | Process coupling: Modular System 32 DI signals,+/-24V |
| 10.124220 | ibaMS16xDIO-24V | Process coupling: Modular System 16 DI/DO signals,+/-24V |
| 10.124250 | ibaMS16xDO-2A | Process coupling: Modular System 16 DO signals, 2A, max 55VDC |
| 10.124260 | ibaMS32xDO-24V | Process coupling: Modular System 32 DO signals, 24V |
| 10.124300 | ibaMS8xICP | Process coupling: Modular Systems 8 ICP signals ,16Bit,+/-5V |
| 10.124302 | ibaMS8xIEPE | Process coupling: Modular System 8 IEPE signals ,24Bit |
| 10.124310 | ibaMS4xUCO | Process coupling: Modular System 4 Universal Counter Input ,16Bit |
| 10.124500 | ibaMS8xAI-110VAC | Process coupling: Modular System 8 AI signals,110VAC, 16Bit |
| 10.124521 | ibaMS4xAI-380VAC | Process coupling: Modular System 4 AI signals, 380VAC, 16Bit |
| 10.124600 | ibaMS3xAI-1A | Process coupling: Modular System 3 AI signals,16Bit, +/- 3A DC |
| 10.124610 | ibaMS3xAI-5A | Process coupling: Modular System 3 AI signals,16Bit, +/-15A DC |
| 10.124620 | ibaMS3xAI-1A/100A | Process coupling: Modular System 3 AI signals,16Bit, 1A/100A - (2xADC) |
| Order no. | Name | Description |
|---|---|---|
| 10.100000 | ibaPADU -8AI-U | Process coupling: Analog and digital inputs 8A+8D inputs,+/-10V .. +/- 60V,16Bit ADCs, 1kHz |
| 10.100010 | ibaPADU -8AI-I | Process coupling: Analog and digital inputs 8A+8D inputs,+/-20mA,16Bit ADCs, 1kHz |
| 10.100100 | ibaPADU-D-8AI-U | Process coupling: Analog and digital inputs 8A+8D inputs,+/-2.5 V .. +/-60 V,16Bit ADCs, max. 40kHz |
| 10.100110 | ibaPADU-D-8AI-I | Process coupling: Analog and digital inputs 8A+8D inputs,+/-20mA,16Bit ADCs, max. 40kHz |
| 10.121000 | ibaPADU-4-AI-U | Process coupling: Analog Input 4 AI,+/-250mV ..+/-24V, 16Bit, 100kHz |
| Order no. | Name | Description |
|---|---|---|
| 10.130000 | ibaPADU-C-8AI-Z1 | Process coupling: Data acquisition and recording 8AI +/- 10V, 8DI 0V ..+30V, ACCU, 4GB-SD card, USB, Ethernet |
| 10.130001 | ibaPADU-C-8AI-Z2 | Process coupling: Data acquisition and recording 8AI +/- 10V, 8DI 0V ..+30V, ACCU, 32GB-SD card, USB, Ethernet |
订单号名称说明
15.140010 ibaNet750-BM-D过程耦合：用于WAGO IO System750的总线耦合模块
15.144000 ibaNet750-400 / 2-DI 3ms过程耦合：用于ibaNet 750的数字量输入模块，2通道数字量输入24V，3ms输入
15.144010 baNet750-401 / 2-DI 0.2ms过程耦合：用于ibaNet 750的数字量输入模块，2通道数字量输入24V，0.2ms
15.144020 ibaNet750-402 / 4-DI 3ms过程耦合：用于ibaNet 750的数字量输入模块，4通道数字量输入24V，3ms
15.144021 ibaNet750-402 / 4-DI 3ms，扩展过程耦合：用于ibaNet 750的数字输入模块，4通道数字输入24V，3ms，扩展
15.144030 ibaNet750-403 / 4-DI 0.2ms过程耦合：用于ibaNet 750的数字量输入模块，4通道数字量输入24V，0.2ms
15.144050 ibaNet750-405 / 2-DI 230V AC过程耦合：用于ibaNet 750的数字量输入模块，2通道数字量输入230V AC
15.144060 ibaNet750-406 / 2-DI 120V AC过程耦合：用于ibaNet 750的数字量输入模块，2通道数字量输入120V AC
15.144100 ibaNet750-410 / 2-DI DC 24V过程耦合：用于ibaNet 750的数字量输入模块，2通道数字量输入24V DC 3.0ms
15.144120 ibaNet750-412 / 2-DI 48V / 3ms过程耦合：用于ibaNet 750的数字量输入模块，2通道数字量输入48V，3ms
15.144150 ibaNet750-415 / 4-DI AC / DC 24V过程耦合：用于ibaNet 750的数字输入模块，4通道数字输入AC / DC 24V，20ms
15.144300 ibaNet750-430 / 8-DI DC 24V过程耦合：用于ibaNet 750的数字量输入模块，8通道数字量输入24V DC 3.0ms
15.144310 ibaNet750-431 / 8-DI DC 24V过程耦合：用于ibaNet 750的数字量输入模块，8通道数字量输入24V DC 0.2ms
15.144520 ibaNet750-452 / 2-AI 0..20mA过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟量输入，0..20mA;差分
15.144530 ibaNet750-453 / 4-AI 0..20mA过程耦合：用于ibaNet 750的模拟量输入模块，4通道模拟量输入，0..20mA;单端
15.144540 ibaNet750-454 / 2-AI 4-20mA过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟量输入，4-20mA；微分
15.144550 ibaNet750-455 / 4-AI 4-20mA过程耦合：用于ibaNet 750的模拟输入模块，4通道模拟输入，4..20mA;单端
15.144560 ibaNet750-456 / 2-AI +/- 10V差分输入过程耦合：用于ibaNet 750的模拟输入模块，2通道模拟输入+/- 10V差分
15.144570 ibaNet750-457 / 4-AI +/- 10V过程耦合：用于ibaNet 750的模拟量输入模块，4通道模拟量输入，+ /-10 V;单端
15.144600 ibaNet750-460 / 4-AI PT100过程耦合：用于ibaNet 750的模拟量输入模块，4通道模拟量输入，PT100
15.144603 ibaNet750-460 / 4-AI PT1000过程耦合：用于ibaNet 750的模拟量输入模块，4通道模拟量输入，PT1000
15.144610 ibaNet750-461 / 2-AI PT100过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟量输入，RTD，PT100
15.144613 ibaNet750-461 / 2-AI PT1000过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟量输入，PT1000
15.144650 ibaNet750-465 / 2-AI 0..20mA，单端过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟输入，0..20mA，单端
15.144660 ibaNet750-466 / 2-AI 4..20mA，单端过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟输入，4..20mA，单端
15.144670 ibaNet750-467 / 2-AI 0..10V过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟量输入，0..10V
15.144690 ibaNet750-469 / 2-AI Termo Diag，类型1过程耦合：用于ibaNet 750的模拟量输入模块，2通道模拟量输入，Termo / K / Diag
15.144691 ibaNet750-469 / 2-AI Termo Diag，S型过程耦合：用于ibaNet 750的模拟输入模块，2通道模拟输入，Termo / S / Diag
15.144692 ibaNet750-469 / 2-AI Termo Diag，L型过程耦合：用于ibaNet 750的模拟输入模块，2通道模拟输入，Termo / L / Diag
15.144696 ibaNet750-469 / 2-AI Termo Diag，J型过程耦合：用于ibaNet 750的模拟输入模块，2通道模拟输入，Termo / J / Diag
15.144750 ibaNet750-475 / 2-AI AC / DC 0-1A过程耦合：用于ibaNet750的模拟输入模块，2通道模拟输入AC / DC 0-1A差分
15.144760 ibaNet750-476 / 2-AI +/- 10V 16Bit过程耦合：用于ibaNet 750的模拟输入模块，2通道模拟输入，+ /-10V 16Bit
15.144910 ibaNet750-491 / 1-AI电阻测量桥接过程耦合：用于ibaNet 750的模块，1通道模拟输入分辨率测量。桥牌
15.144911 ibaNet750-491 / 1-AI电阻测量桥65ms过程耦合：用于ibaNet 750的模块，1通道模拟输入分辨率测量。桥牌
15.144940 ibaNet750-494 / 3-Ph-1A过程耦合：用于ibaNet 750的模块，三相功率测量模块；交流480 V 1 A
15.144941 ibaNet750-494 / 3-Ph-5A过程耦合：用于ibaNet 750的模块，三相功率测量模块；交流480 V 5 A
15.144950 ibaNet750-495 / 3-Ph-1A过程耦合：用于ibaNet 750的模块，三相功率测量模块；交流690 V 1 A
15.144951 ibaNet750-495 / 3-Ph-5A过程耦合：用于ibaNet 750的模块，三相功率测量模块；交流690 V 5 A
15.145010 ibaNet750-501 / 2-DO 0.5A Pro
