供应天津特精G5齿轮泵G5液压泵G5高压泵G5泵批发零售
必需汽蚀余量 | 4m |
---|---|
材质 | 铝合金 |
规格 | 5-25 |
排出口径 | 20mm |
排出压力 | 25Mpa |
驱动方式 | 电动 |
适用范围 | 液压系统 |
吸入口径 | 27mm |
效率 | 0.88 |
性能 | 无泄露 |
用途 | 增压泵 |
原理 | 齿轮泵 |
转速 | 3500r/min |
贸易属性 | 内贸 |
泵轴位置 | 边立式 |
叶轮数目 | 主被齿轮各一个 |
叶轮吸入方式 | 单吸式 |
发货期限 | 1天 |
品牌 | 特精 |
型号 | G5 |
打样周期 | 1-2天 |
产品名称:G5齿轮泵G5液压泵G5高压泵G5泵 产品型号:G5-(排量)*-*(轴伸)** *-20-* 产品规格:1 产品单价:电议 |

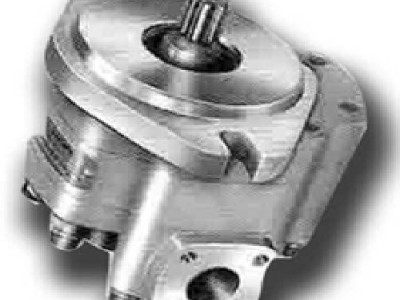

一,概述 G5液压泵是具有轴向挠性补偿和径向液压平衡的外啮合齿轮泵。采用三开式结构,由前盖、中间体、后盖、齿轮、压力板和密封件等零部件组成。G5液压泵具有各种符合SAE标准GB安装法兰,轴伸,进油口及出油口连接。G5系列齿轮泵广泛应用于拖拉机、工程机械和其他机械的液压系统中。
G5液压泵齿轮泵突出特点:
1.结构紧凑,体积小重量轻。
2.工作可靠。
3.转速高,压力大。
4.连接形式符合SAE标准。
二,G5液压泵 功能参数
G5齿轮泵单泵型号:
G5-5-1E13S-20-L、G5-6-1E13S-20-L、G5-8-1E13S-20-L、G5-10-1E13S-20-L、G5-12-1E13S-20-L、G5-16-1E13S-20-L、G5-20-1E13S-20-L、G5-25-1E13S-20-L、G5-30-1E13S-20-L、G5-5-1E13F-20-R、G5-6-1E13F-20-R、G5-8-1E13F-20-R、G5-10-1E13F-20-R、G5-12-1E13F-20-R、G5-16-1E13F-20-R、G5-20-1E13F-20-R、G5-25-1E13F-20-R、G5-30-1E13F-20-R、G5-5-1E13F-20-L、G5-6-1E13F-20-L、G5-8-1E13F-20-L、G5-10-1E13F-20-L、G5-12-1E13F-20-L、G5-16-1E13F-20-L、G5-20-1E13F-20-L、G5-25-1E13F-20-L、G5-30-1E13F-20-L、G5-5-1H15S-20-L、G5-6-1H15S-20-L、G5-8-1H15S-20-L、G5-10-1H15S-20-L、G5-12-1H15S-20-L、G5-16-1H15S-20-L、G5-20-1H15S-20-L、G5-25-1H15S-20-L、G5-30-1H15S-20-L、G5-5-1H15S-20-R、G5-6-1H15S-20-R G5-8-1H15S-20-R、G5-10-1H15S-20-R、G5-12-1H15S-20-R、G5-16-1H15S-20-R、G5-20-1H15S-20-R、G5-25-1H15S-20-R、G5-30-1H15S-20-R、G5-5-1H15F-20-L、G5-6-1H15F-20-L、G5-8-1H15F-20-L、G5-10-1H15F-20-L、G5-12-1H15F-20-L、G5-16-1H15F-20-L、G5-20-1H15F-20-L、G5-25-1H15F-20-L、G5-30-1H15F-20-L、G5-20-1FE13F-20-L、G5-20-1FE13F-20-R、G5-20-1E13S-20-R、G5-5-1FE13F-20-L、G5-6-1E13S-20-R、G5-8-A15R-20-R、G5-6-1E13S-20-R、G5-8-1H15F-20-R、G5-16-1E13S-20-R、G5-5-A13F-20-L、G5-6-A13F-20-L、G5-8-A13F-20-L、G5-10-A13F-20-L、G5-12-A13F-20-L、G5-16-A13F-20-R、G5-20-A13F-20-L、G5-25-A13F-20-L、G5-30-A13F-20-L、G5-8-1E13S-20-R、G5-12-1E13S-20-R、G5-5-1E13S-20-R、G5-8-A15S-20-R、G5-6-1E13S-20-R、G5-6-1E13S-20-L、G5-8-A15S-20-L、G510-1E13S-20-R、G5-10-1E13S-
20-R、G5-16-A15R-20-L、G5-16-A15R-20-R、G5-5-1FE13F-20-L、G5-5-1FE13F-20-R、G5-20-A15R-20-R、G5-20-A15R-20-L、G5-25-1FE13F-20-R、G5-25-1FE13F-20-L、G5-6-A15S-20-R、G5-6-A15S-20-L、G5-20-1E13R-20-L、G5-20-1E13R-R、G5-10-A15S-L、G5-10-A15S-R、G5-8-A15R-20-L、G5-16-A15R-20-L、G5-20-1E13S-20-R、G5-20-1E13S-20-L、G5-16-1E13S-20-R、G5-6-A13S-20-R、G5-16-1H15F-20-L、G5-16-1H15F-20-R、G5-16-AH15F-20-R、G5-16-AH15F-20-L、G5-6-6-AF15F-20-R、G5-6-6-AF15F-20-L、G5-30-6-1E13S-20-R、G5-30-6-1E13S-20-L。
本公司供应G5齿轮泵、GPC4齿轮泵、GPC4-G5齿轮泵以及GM5齿轮马达、GMC4齿轮马达等,欢迎来电咨询选购!
