供应CAPRONI齿轮泵（特价）

上海易瑾慧机电科技有限公司。

特价供应意大利CAPRONI齿轮泵

 CAPRONI泵，CAPRONI阀

厂商:CAPRONI 编号:

CAPRONI泵，CAPRONI阀

品牌名称：

CAPRONI

主要产品：

CAPRONI，CAPRONI齿轮泵|控制阀|阀|液压系统|液压马达|油缸|直流电动机|电动车等。诺希德优势提供！液压装置，液压动力包，液压齿轮泵，液压齿轮电机等。

      CAPRONICAPRONI泵，CAPRONI阀的详细资料：

CAPRONI齿轮泵|控制阀|阀|液压系统|液压马达|油缸|直流电动机|电动车等。CAPRONI产品主要用在农业部门介绍，道路，建筑机械，车辆，汽车，叉车，工业设备和船舶领域。

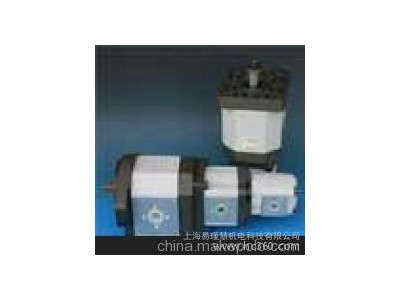

CAPRONI Gear Pumps齿轮泵

Group 00

Displacement: 0.25...2 cm3

Outlet pressure: up 200 bar

Speed: 750 …3500 rev/min

Fluid temperature: -20 … +80 °C

Working liquid: hydraulic oils

Viscosity: 16 … 200 mm2/s

Degree of filtration: 15-25μ

 Group 10

Displacement: 1...9.8 cm3

Outlet pressure: 250 bar

Speed: 650 …3500 rev/min

Fluid temperature: -20 … +80 °C

Working liquid: hydraulic oils

Viscosity: 20 … 200 mm2/s

Degree of filtration: 25μm

Group 20

Displacement: 4.5...36 cm3

Outlet pressure: 250 bar

Speed: 650 …3500 rev/min

Fluid temperature: -20 … +80 °C

Working liquid: hydraulic oils

Viscosity: 20 … 200 mm2/s

Degree of filtration: 25μm

Group 30

Displacement: 20...60 cm3

Outlet pressure: 250 bar

Speed: 650 …2500 rev/min

Fluid temperature: -20 … +80 °C

Working liquid: hydraulic oils

Viscosity: 20 … 200 mm2/s

Degree of filtration: 25μm

Pumps with Valves

The technical characteristics are in compliance with the pumps of 10, 20 and 30 groups.

For more details, please see the catalogue.

Tandem Pumps

The technical characteristics are determined by the compound gear pumps.

For more details, please see the catalogue.

CAPRONI Control Valves 控制阀

Sectional Control Valves

Rated flow: 80 l/min

Rated pressure: 250 bars

Max. back pressure: 18 bars

Nominal port size: 12 mm

Fluid temperature: -20 … +80 °C

Working liquid: hydraulic oils

Viscosity: 15 … 300 mm2/s

Directional Control Valves

Max. pressure:

Port P,A and B: 320 bars

Port T: 160 bars

Max flow:

NG06 - 80 l/min

NG10 - 140 l/min

Fluid temperature: -20 … +80 °C

Working liquid: hydraulic oils

Viscosity: 10 … 800 mm2/s

CAPRONI Valves阀门

Valves - for modular , pipe and plate mounting

Available:

Relief, Relief-Prefill, Unloading Relief, Pressure Reduction, Check, Flow Control, Dividing and Combining Valves

Nominal bore: 6 , 10 mm

Pressure control range: 5 … 100 bar

15 ... 200 bar

20 … 320 bar

Rated flow: 10 ... 160 l/min

Working temperature: -20 … +70 °C

Working liquid: hydraulic oils

Viscosity: 10 to 200 mm2/s

Degree of filtration: 25μm

Cartidge Valves

Available:

Solenoid, Relief, Sequence, Needle, Manual, Pressure reduction Valves Operating pressure: 250 bars

Internal leakage: 0.22 cc/min at 250 bars

Fluid temperature: -20 … +90 °C

Working liquid: hydraulic oils

Viscosity: 10 … 800 mm2/s

Degree of filtration: 25μm

CAPRONI Hydraulic systems液压装置

Mini Power Packs MPP

El. Motors:

AC 0.55...3 kW , mono or three-phase

DC 0.8... 3 kW ; 12 or 24 V

Tank volume: 1...60 l

Pump displacement: 1...6,1 cm3

Wide range of modular elements allowing the implmentation of additional hydraulic schemes.

Mini power packs HC

 El. Motors:

DC 1... 3 kW ; 12 or 24 V

Tank volume: 2...15 l

Pump displacement: 1...6,1 cm3

Working pressure: up to 250 bar

Assembled with different valves depending on the hydraulic scheme.

Hydraulic station

El.motors

AC - to 25 kw.; 1-3 pieces

Mounting - vertical, horizontal, moved out;

Capacity of the tank - to 500 L.;

Displacement of the pump: 1-55 cm3

They are produced with a large variety of elements - accumulators,coolers and others for the realization of each concrete hydraulic sheme.

Motor-pump

DC motor from all dimensions, coupled with gear pump - group 10 or group 20.

Different modifications and variants for implementation of various decisions.

More information You can find in our catalogue.

CAPRONI Hydraulic motors液压马达

Hydraulic motor MGL

Displacement [cm3/rev.]         50 ÷ 315

Maximum pressure [bar]        140

Maximum oil flow [lpm]           25 ÷ 60

Maximum speed [RPM]          600

Maximum torque [daNm]        7.4 ÷ 30.5

Minimum speed [RPM]           10

Temperature range [°C]         -30 ÷ 90

Viscosity range [mm2/s]         20 ÷ 75

Hydraulic motor MHL

Displacement [cm3/rev.] 50 ÷ 400

Maximum pressure [bar] 175

Maximum oil flow [lpm]  60

Maximum speed [RPM] 1200

Maximum torque [daNm] 9.4 ÷ 50

Temperature range [°C] -30 ÷ 90

Viscosity range [mm2/s] 20 ÷ 75

Gear motors
